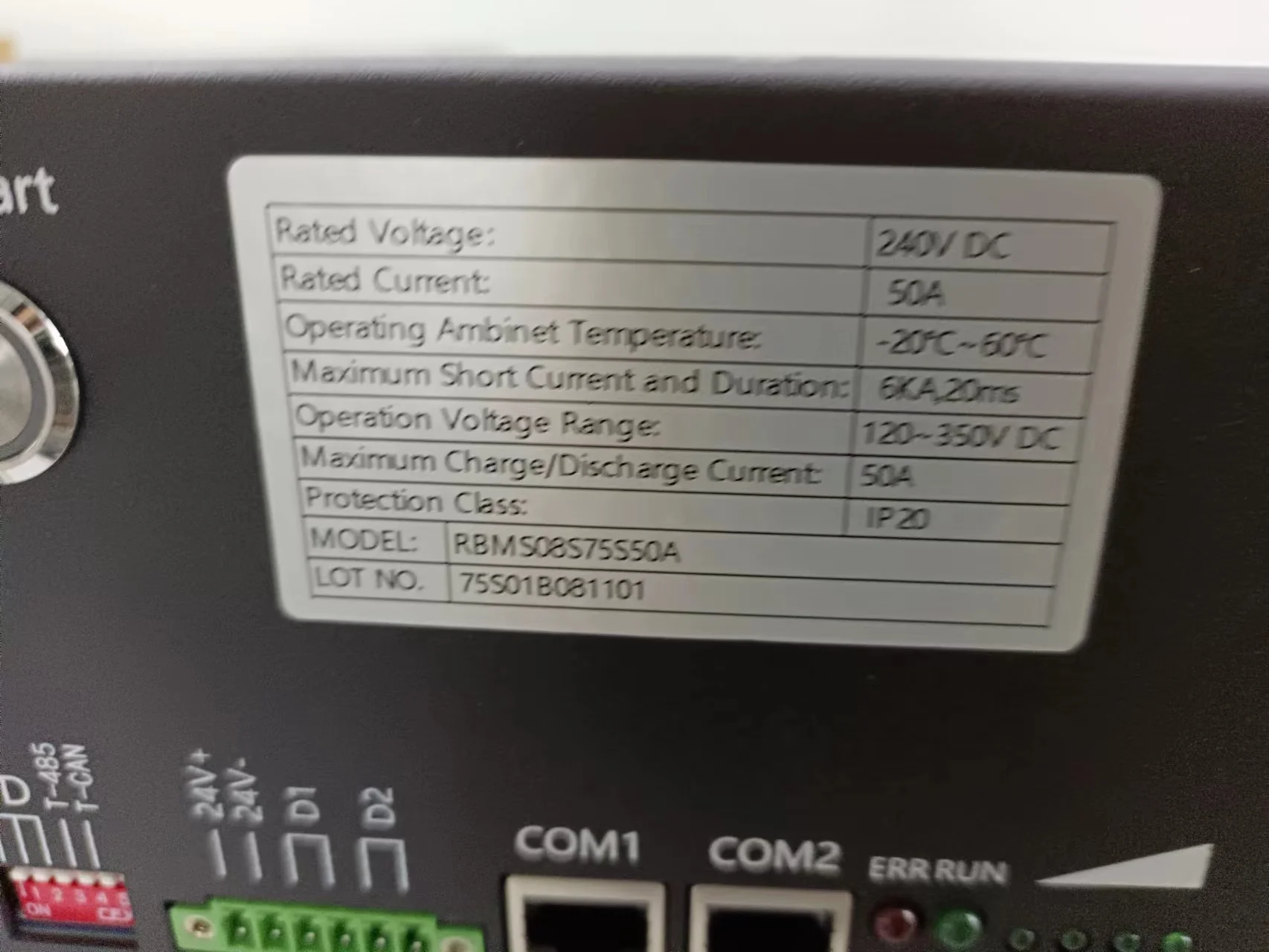

GCE High Voltage Master-Slave Battery Management System with 3 Years Warranty LAN and Bluetooth for Solar Energy Storage

Place of Origin : Hunan, China

Brand Name : GCE/OEM/ODM

Model Number : RBMS08S60S50A

Certification : CE/RoHS/MSDS

MOQ : 1

Price : $572-635

Voltage : 192V

Current : 50A

Dimension : 480*370*100MM

System Voltage : 120 - 370 VDC

Balance Current : 100mA ± 10mA

Temperature Sampling : 12 Battery temperature(4*3) for 60S

Temperature Accuracy : ± 2℃

Voltage Accuracy : single cell ±20mV

Communication Modes : RS485/CAN/LAN/Bluetooth

Short Circuit Protection : 6KA 20ms

Rated Current : 50A (100A optional)

Max Load : 50A system transient: 70A/10S, Steady-state: 100A, transient state: 150A/10S

Power Consumption : ≤10W

Withstand Voltage : 1800VDC 1mA 1min

Operating Temperature : Charging: -10～75℃, Discharging: -20 to 75℃, Storage: -40 to +75℃

Contact Now

Product Specification
Product Name
GCE High voltage BMS, New type Master Slave Battery Management System for Lifepo4/NMC/ Lithium Battery energy storage system
GCE High Voltage Master-Slave Battery Management System with 3 Years Warranty LAN and Bluetooth for Solar Energy Storage
GCE High Voltage Master-Slave Battery Management System with 3 Years Warranty LAN and Bluetooth for Solar Energy Storage
GCE High Voltage Master-Slave Battery Management System with 3 Years Warranty LAN and Bluetooth for Solar Energy Storage
GCE High Voltage Master-Slave Battery Management System with 3 Years Warranty LAN and Bluetooth for Solar Energy Storage
GCE High Voltage Master-Slave Battery Management System with 3 Years Warranty LAN and Bluetooth for Solar Energy Storage
Models ( For your Choice)
Model No
rated Current
Number of strings
number of Rack







Special design and requirement also available, Please contact us for more details!

RBMS07D30S50A
50A
30S
parallel
RBMS07D30S100A
100A
30S
parallel
RBMS07S30S50A
50A
30S
Single
RBMS07S30S100A
100A
30S
Single
RBMS07D40S50A
50A
40S
parallel
RBMS07D40S100A
100A
40S
parallel
RBMS07S40S50A
50A
40S
Single
RBMS07S40S100A
100A
40S
Single
RBMS07S45S50A
50A
45S
Single
RBMS07S45S100A
100A
45S
Single
............
............
............
............
RBMS07S75S50A
50A
75S
Single
RBMS07S75S100A
100A
75S
Single
RBMS07D75S50A
50A
75S
parallel
RBMS07D75S100A
100A
75S
parallel
RBMS08S60S50A
50A
60S
Single
RBMS08S60S100A
100A
60S
Single
Delivery List For One Set （ Total Units in a Set)
Part Name
Specification
Quantity

host
According to the order model requirements
1pc
Voltage acquisition wiring harness
Standard 1.2m voltage collection line
4pcs (60 strings); 5pcs (75 strings)
Temperature collection harness
Standard 1.2m temperature collection line
4pcs (60 strings); 5pcs (75 strings)
AC plug

1pc
Terminals
8 Pin green
1pc
Specification & Technical data
Item
Decriptions
Product Name
Integrated BMS ( BMS for master and slave all in one)
Model No
RBMS08S60S50A
Startup mode
DC start (optional AC and DC starter)
System operating Voltage
120 - 370 VDC
Number of strings
60S( 15S*4)
S for Single Rack D for multiple racks in parallel connection
Balance
Equilibrium type
Passive resistance equalization
Balanced current
100mA ± 10mA(Single cell 3.4V ）
Temperature Sampling
Numbers
12 Battery temperature(4*3) for 60S
Sampling accuracy
± 2℃
Voltage Sampling
Sampling accuracy
single cell ±20mV
SOC%
battery indicator
25 for 0%-25% 50 for 25%-50% 75 for 50%-75% 100 for 75%-100%
Communication mode
CAN: 1 channel (communication with PCs / UPS)
RS485: 1 channel (communication with upper computer / PCS / UPS)
Bluetooth: optional (android app available)
GPRS: optional,
Display mode
6-digit LED indicator, including 1-bit fault indication, 1-bit operation indication, 4-bit SOC power indication
HMI display: optional
Short circuit protection

Support 6KA 20ms
Rated Current
50A（100A is optional, accroding to the customers' need)
Maximum load of power components
50A system transient: 70A/10S
Steady-state：100A transient state：150A/10S
Alarm level
1 Level
Protection level
2 two levels
Level 1 cut off charge / discharge
Level 2 micro cut-off switch, system power down
Power Consumption
≤10W
Withstand voltage rating
1800VDC 1mA 1min
Safety certification
Comply with CE
certification standards
Operating Temperature
Charging : －10～75℃
Discharging : -20 to 75℃
Storage : -40 to +75℃
Operating humidity range
<90 RH(40℃±2℃)
Product Feature
1.It is high integrated with less installation space.
2.Long life cycle, >3000 times at 80% DOD.
3.It without heavy metals and environment friendly.
4.Maintenance free,there is no memory effect.
5.Internal BMS with full protection,battery has high voltage protection with higher reliability.
6. Master and Slave all in one.
Application
GCE High Voltage Master-Slave Battery Management System with 3 Years Warranty LAN and Bluetooth for Solar Energy Storage
Company Profile
GCE High Voltage Master-Slave Battery Management System with 3 Years Warranty LAN and Bluetooth for Solar Energy Storage
We are factory,welcome to visit us!
GCE High Voltage Master-Slave Battery Management System with 3 Years Warranty LAN and Bluetooth for Solar Energy Storage
Warehouse
GCE High Voltage Master-Slave Battery Management System with 3 Years Warranty LAN and Bluetooth for Solar Energy Storage
Production Line
GCE High Voltage Master-Slave Battery Management System with 3 Years Warranty LAN and Bluetooth for Solar Energy Storage
Assembling Line
GCE High Voltage Master-Slave Battery Management System with 3 Years Warranty LAN and Bluetooth for Solar Energy Storage
GCE High Voltage Master-Slave Battery Management System with 3 Years Warranty LAN and Bluetooth for Solar Energy Storage
Certification
GCE High Voltage Master-Slave Battery Management System with 3 Years Warranty LAN and Bluetooth for Solar Energy Storage
Packaging and Shipping
GCE High Voltage Master-Slave Battery Management System with 3 Years Warranty LAN and Bluetooth for Solar Energy Storage
FAQ
1. Are you a manufacturer or simply a trading company?
 We are a manufacturer, and we sincerely welcome you to visit our factory.

2.Can I get some samples?
 Yes, a sample order is available for quality checking and market testing.

3. What kind of cells are applicable to this Battery Management System?
LFP, NMC, LTO

4. How about the delivery time?
The delivery time will usually take about 15 to 20 working days accordingly to the specification of your order and quantity.

5.What are your terms of payment?
For sample order or small orders usually will require full payment in advance. For Big amount orders can be 30%-50% deposit and the rest payment should be finished before shipping .
Advanced T/T is the main payment term, and other payment terms are negotiable.
6.What are your warranty terms?
We offer a 3-year warranty for RBMS,1-year warranty for PCB.

7. Can you produce BMS with customization requirements?
Yes, based on the order quantity, we can make some small adjustments.

8. How does your factory do regarding quality control?
Quality always comes first. All our products go through strict quality control processes from incoming material to the assembling process. Each product will be tested before packing & shipping.

9. What Trade Terms are available?
No limitation for trade terms. EXW/FOB/CFR are all available.Moreover,we can send BMS via DHL&UPS&FEDEX quickly and easily.other shipping ways can also be negotiable and available.

10. Is your BMS easy and convenient to install&test?
This is our the 4th generation high voltage bms.It's an overall bms solution, that is to say, you don't need professional technology to install our high-voltage BMS to form a complete battery system.

11.What benefits do customers get?
Our high voltage BMS has complete battery charge and discharge control logic and balance function between batteries. We can also set various parameters of the system according to the actual needs of customers to ensure the stability, reliability and efficient performance of the system.
